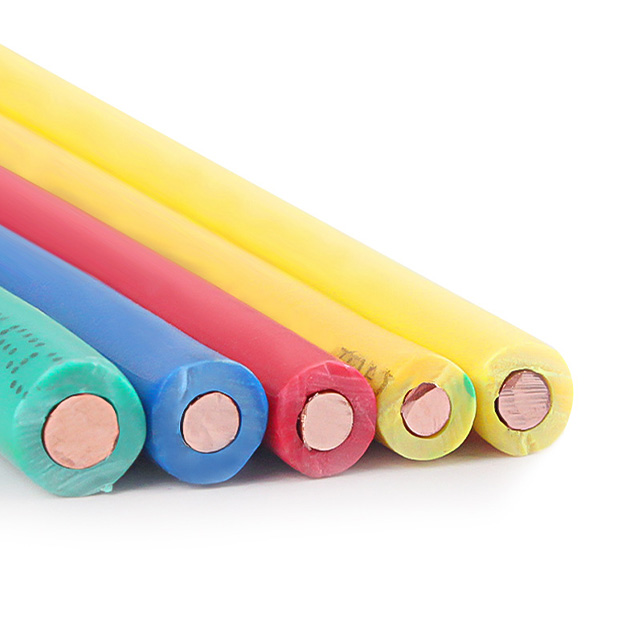

Single core copper 1.5mm 2.5mm 4mm 6mm 10mm pvc house wiring electrical cable building wire

The product of PVC insulated wires belong to the series of laying electric wires,  which is mainly suitable for laying at the fixed places,  It is widely used as connectors of drive,lighting ,electronic equipments  ,Instrument and telecommunication equipments with rated voltage 450/750v or below
send email to us

Products Details

Low voltage pvc insulated electric wire has been widely used in our country with the advantages of excellent electric properties,strong ability to resist short circuit,long service life ,easy to install,operate and maintain,etc The product of PVC insulated wires belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places, It is widely used as connectors of drive,lighting ,electronic equipments ,Instrument and telecommunication equipments with rated voltage 450/750v or below , Part of plastic wires are used at the equipment with A.C rated votage 300/300v or below.1.U0/U is 450/750V, 300/500V and 300/300V 2.The long-term allowable working temperature of the cable core shall not exceed 70℃ 3.Bv-90 should not exceed 90℃, short-term working temperature can be raised to 105℃ 5.The cable laying temperature shall not be lower than 0℃ 6.Allowable bending radius of cable: 7.If the cable outer diameter (D) is less than 25mm, it should not be less than 4D 8.If the cable diameter (D) is 25mm and above, it shall not be less than 6D

Product Name

Copper conductor PVC insulated wire

Material

Copper+PVC

Colour

red/yellow/blue/green/yellow green

Adaptable Voltage (v)

450/750

Specification

1.5㎟-400㎟

MOQ

100m
The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.

Nominal cross section of conductor

mm2

conductor

species

Insulation

Thickness

mm

Upper limit of

average

outside diameter

mm

conductor biggest resistance at 20 ℃ Ω/km

Minimum Insulation resistance at 70℃ MΩ.km

1.5

1

0.7

3.3

12.1

0.011

1.5

2

0.7

3.4

12.1

0.010

2.5

1

0.8

3.9

7.41

0.010

2.5

2

0.8

4.2

7.41

0.009

4

1

0.8

4.4

4.61

0.0085

4

2

0.8

4.8

4.61

0.0077

6

1

0.8

4.9

3.08

0.0070

6

2

0.8

5.4

3.08

0.0065

10

1

1.0

6.4

1.83

0.0070

10

2

1.0

6.8

1.83

0.0065

16

2

1.0

8.0

1.15

0.0050

25

2

1.2

9.8

0.727

0.0050

35

2

1.2

11.0

0.524

0.0040

50

2

1.4

13.0

0.387

0.0045

70

2

1.4

15.0

0.268

0.0035

95

2

1.6

17.0

0.193

0.0035

120

2

1.6

19.0

0.153

0.0032

150

2

1.8

21.0

0.124

0.0032

185

2

2.0

23.5

0.0991

0.0032

240

2

2.2

26.5

0.0754

0.0032

300

2

2.4

29.5

0.0601

0.0030

400

2

2.6

33.5

0.0470

0.0028
1.What are your main products? bare wires,power plant & electrical equipment wire and cable, control cable,electromagnetic wire, 35KV and below power cable, mining cable, Marine cable, flame retardant cables and fireproof cables, low smoke zero halogen cables, termite proof cable, environmental protection wire cable, steel tape armoured cable, etc 2.Can we have our logo or company name to be printed on your products or the package? Yes, OEM & ODM order is warmly welcome and we have fully successful experience in OEM project 3.How does your company do regarding Quality Control? 1)All raw material we selected the high quality one. 2)Professional & Skilful workers care every details in handling the producing. 3)Quality Control Department specially responsible for quality checking in each process. 4.How can I get a sample to test your quality? We can provide free samples for you test and checking, you just need to bear the freight charge. 5.How long is your warranty period? 1 year, and we promise to return or replace the cables within one year if any quality problem is found. Being the top solutions of our factory, our solutions series have been tested and won us experienced authority certifications. For additional parameters and item list details, please click the button to acquire additional nformation. Please feel cost-free to send us your specifications and we'll respond to you asap. We've got a professional engineering team to serve for the every single detailed needs. Free samples may be sent for you personally to know far more facts. So that you can meet your desires, please really feel cost-free to contact us. You could send us emails and call us straight. Additionally, we welcome visits to our factory from all over the world for much better recognizing of our corporation. nd merchandise. In our trade with merchants of several countries, we often adhere to the principle of equality and mutual advantage. It is our hope to market, by joint efforts, both trade and friendship to our mutual benefit. We look forward to getting your inquiries.
